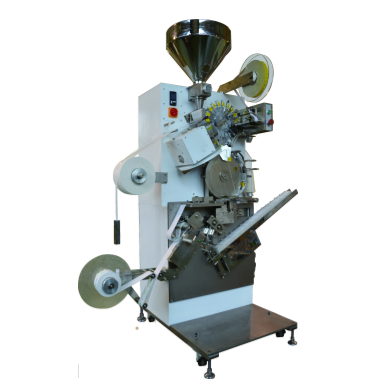

Upgraded edition CCFD6 Automatic High Speed Tea Bag Packing Machine

Item No.: LPMIE104
It can pack tea and coffee powder into filter paper bag with thread, tag and Paper Envelope. it is suitable for pharmaceutical, healthcare products, beverage etc industries.


High Speed tea bag Packing Machine is an automatic precision machine use for packing broken tea and similar herbs into small bags and realize fully automatic procedure including ration filling, heat-sealing of tea bag, pasting thread, linking tag, envelope sealing, dividing groups and counting tea bag. Our company has developed multi-types of Tea-Packing Machine (e.g. Model CCFD6, Model DXDC8I, and Model DXDC8IV) which based on advanced technology in the domestic and overseas trade and has reached the same level of imported equipment; furthermore some performances have exceeded this level.

Tea bag packing machine Model CCFD6 features such functions as automatic ration filling, heat-sealing of tea bags, automatic plastering of cotton thread
and tags, and cold-sealing of the envelope in the longitudinal direction.


Technical data:

1) Max.Output: 110bags/minute
2) Max. dosage: 6cm3
3) Bag dimensions: 62.5 x 50mm
4) Envelope dimensions: 70 x 65mm
5) Tag dimensions: 28 x 24mm
6) Thread length: 210mm
7) Power supply: AC 380V, 0.75kV
8) Weight: 565kg
9) Overall dimensions: 1.7 x 0.9 x 2m
10) Packing: 1pc/carton
Carton dimensions: 1220*1140*1967MM
